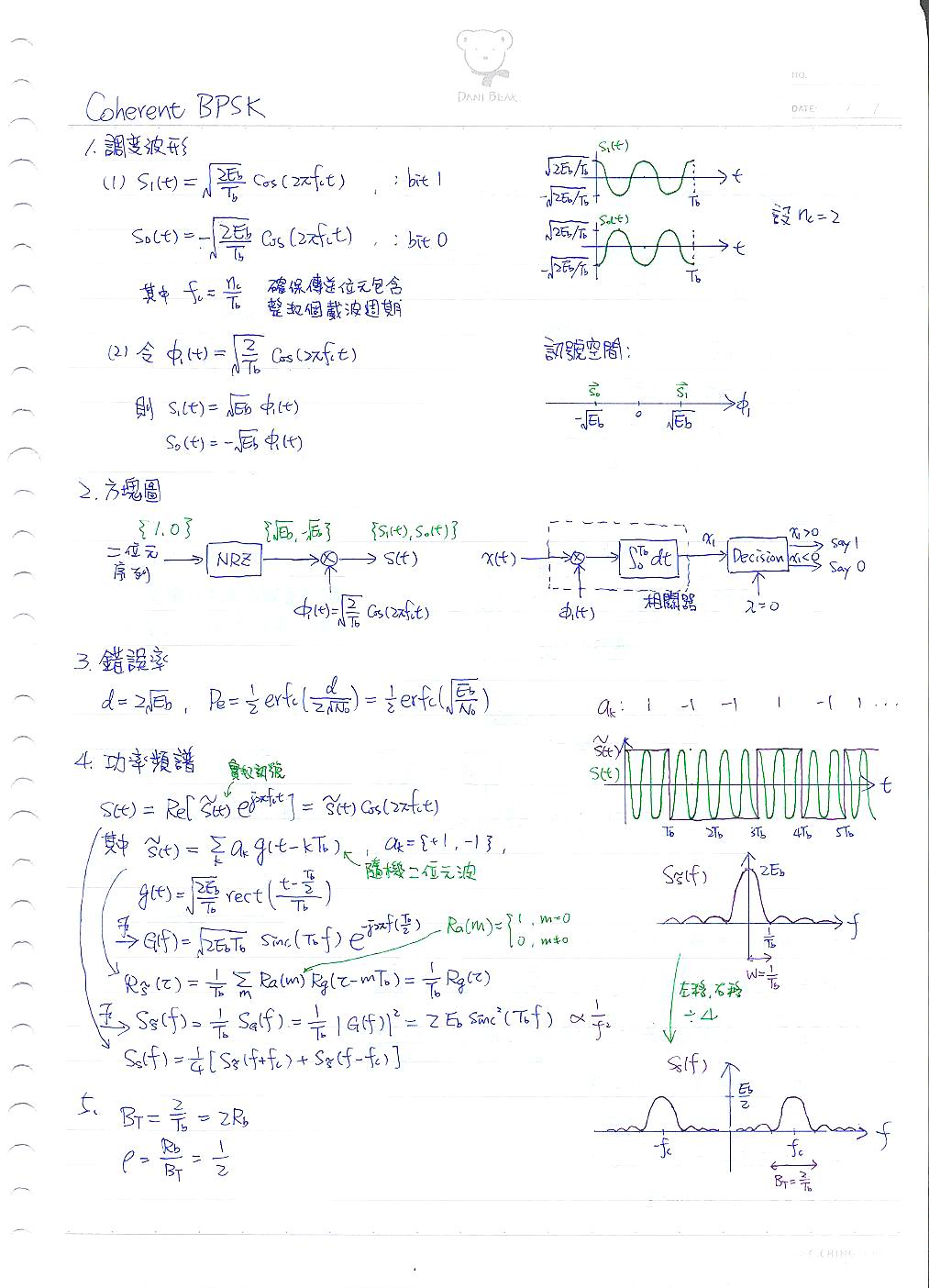

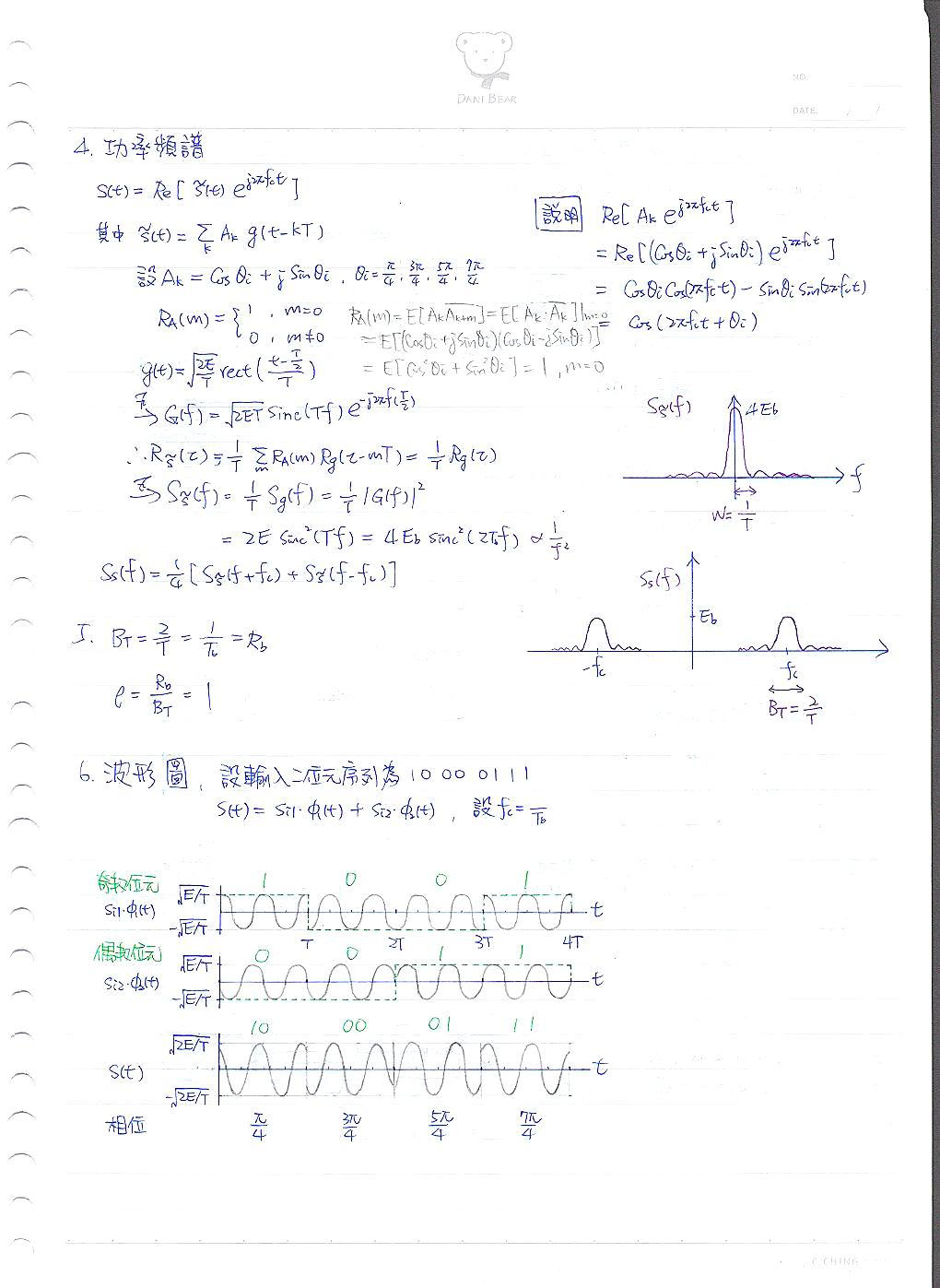

- Coherent BPSK
![[圖]]()

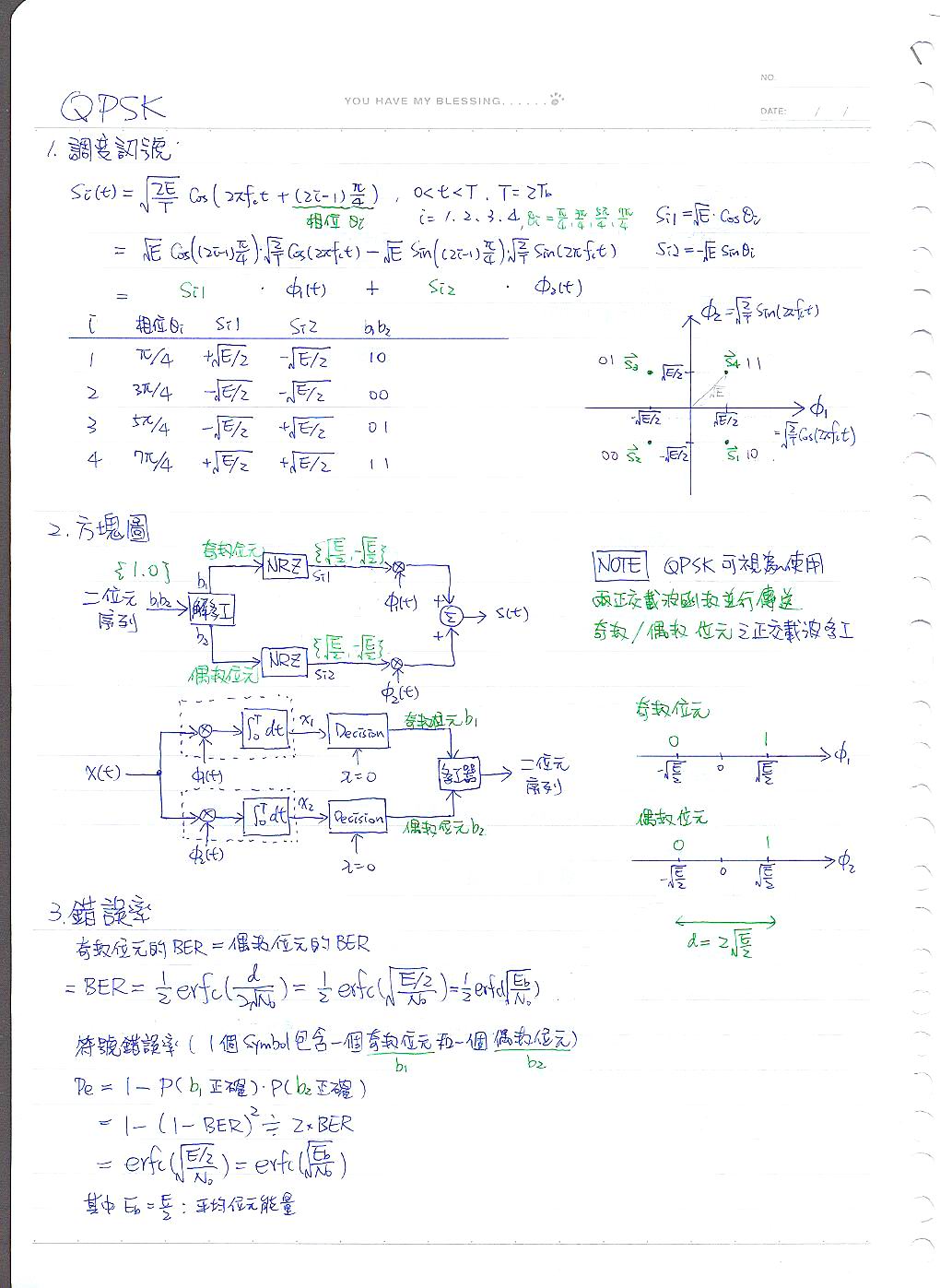

- QPSK
![[圖]]()
![[圖]]()

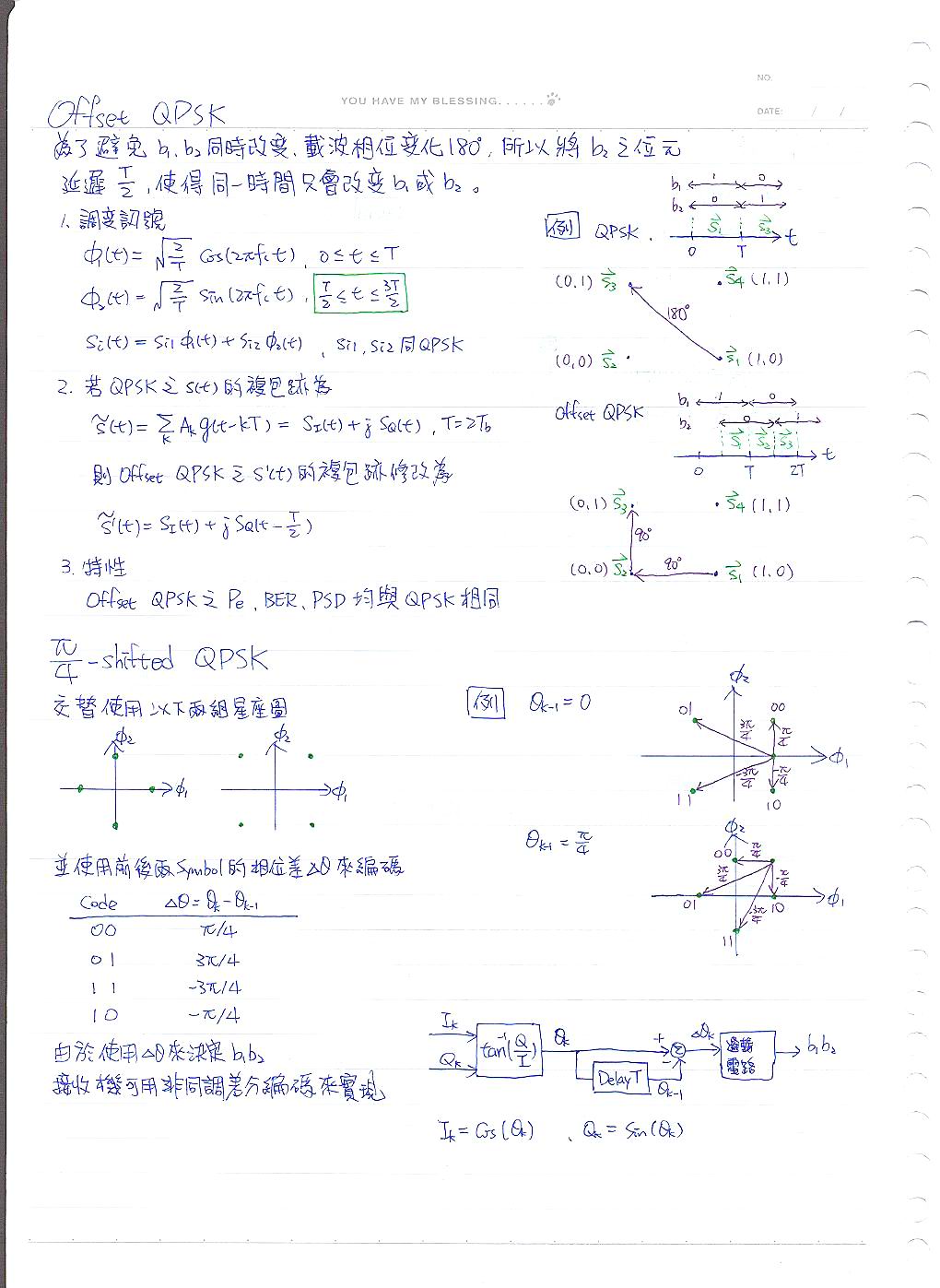

- Offset QPSK
π/4 -shifted QPSK
![[圖]]()

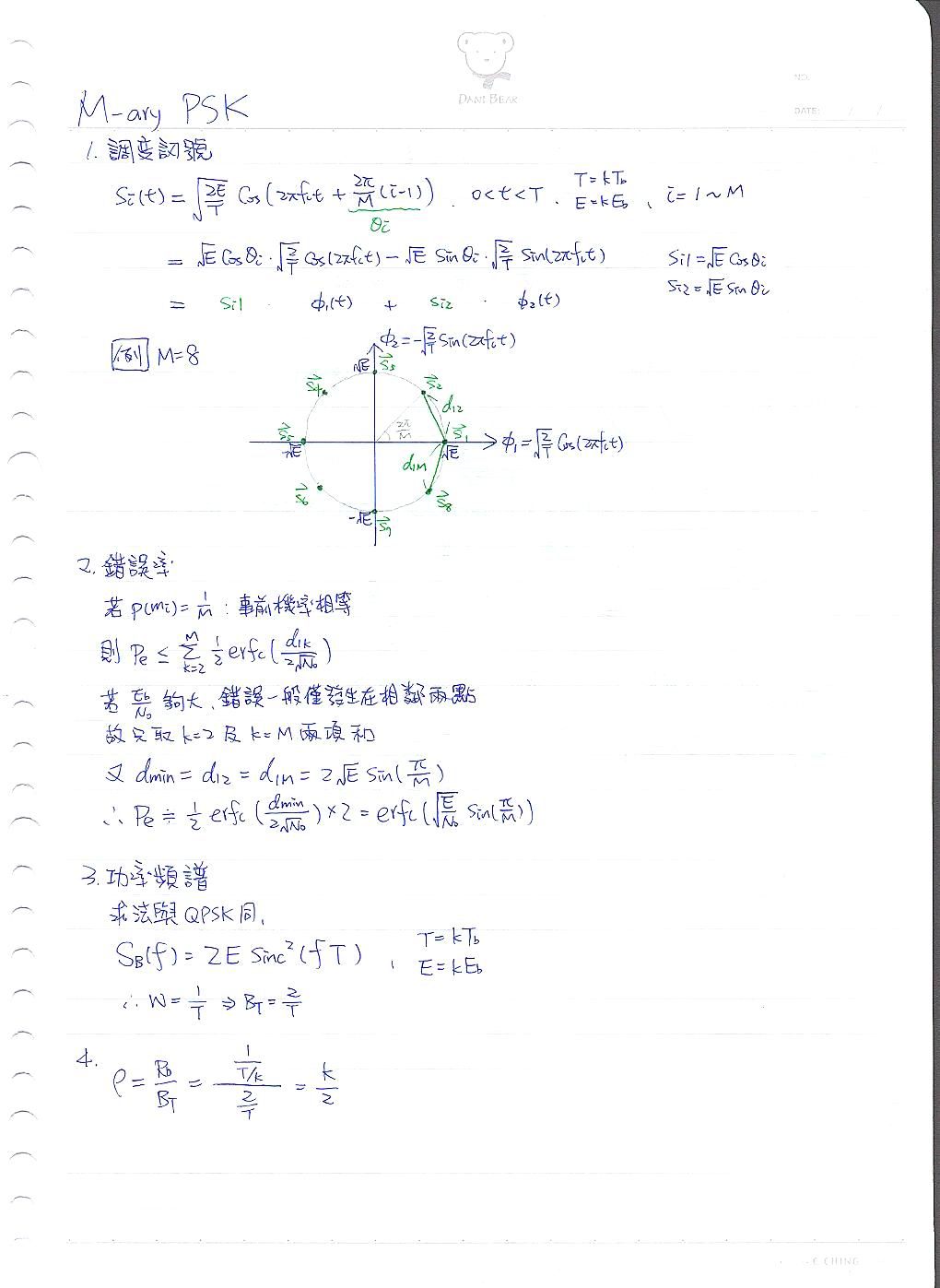

- M-ary PSK
![[圖]]()

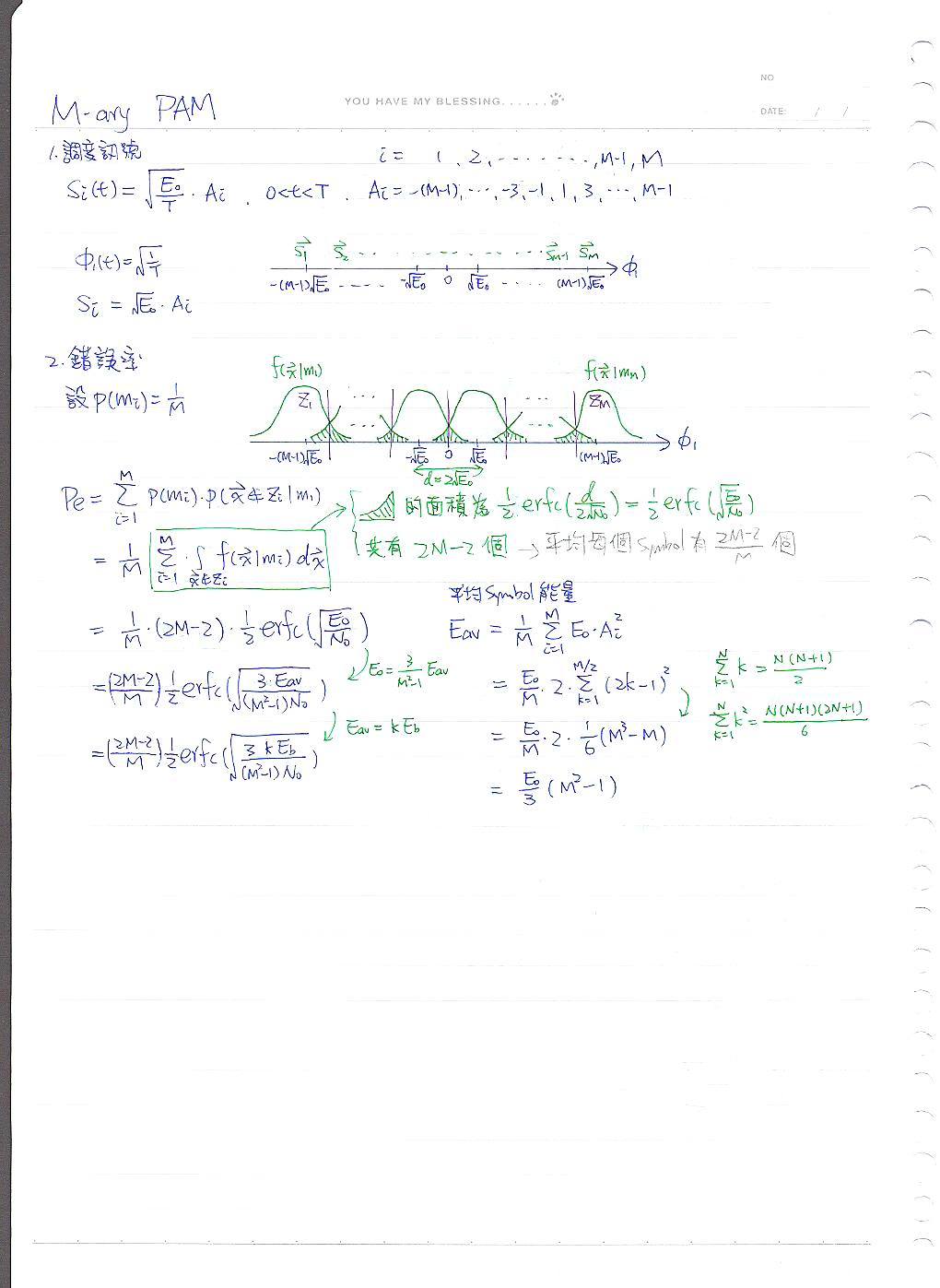

- M-ary PAM
![[圖]]()

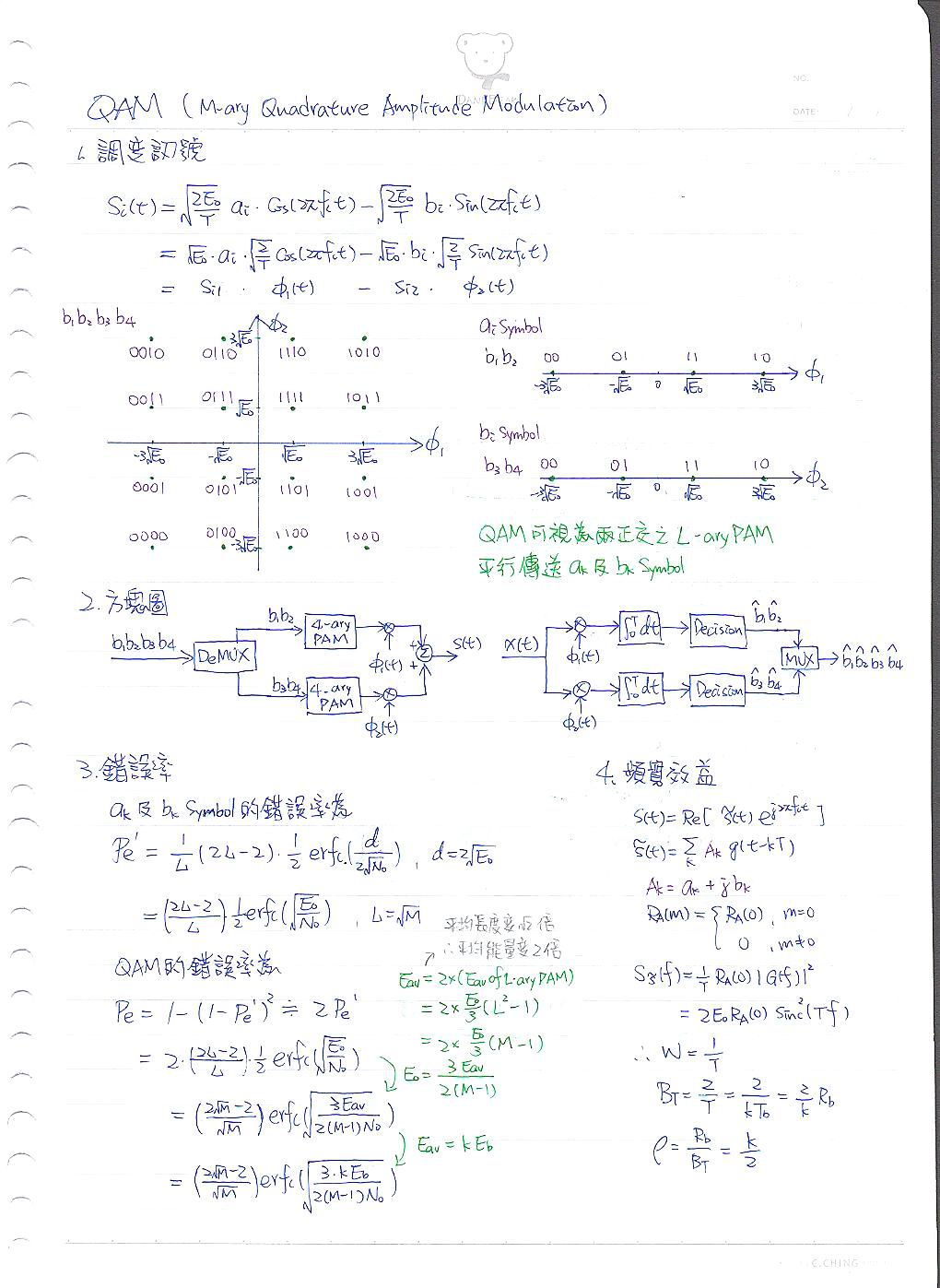

- QAM (M-ary Quadrature Amplitude Modulation)
![[圖]]()
![[圖]]()

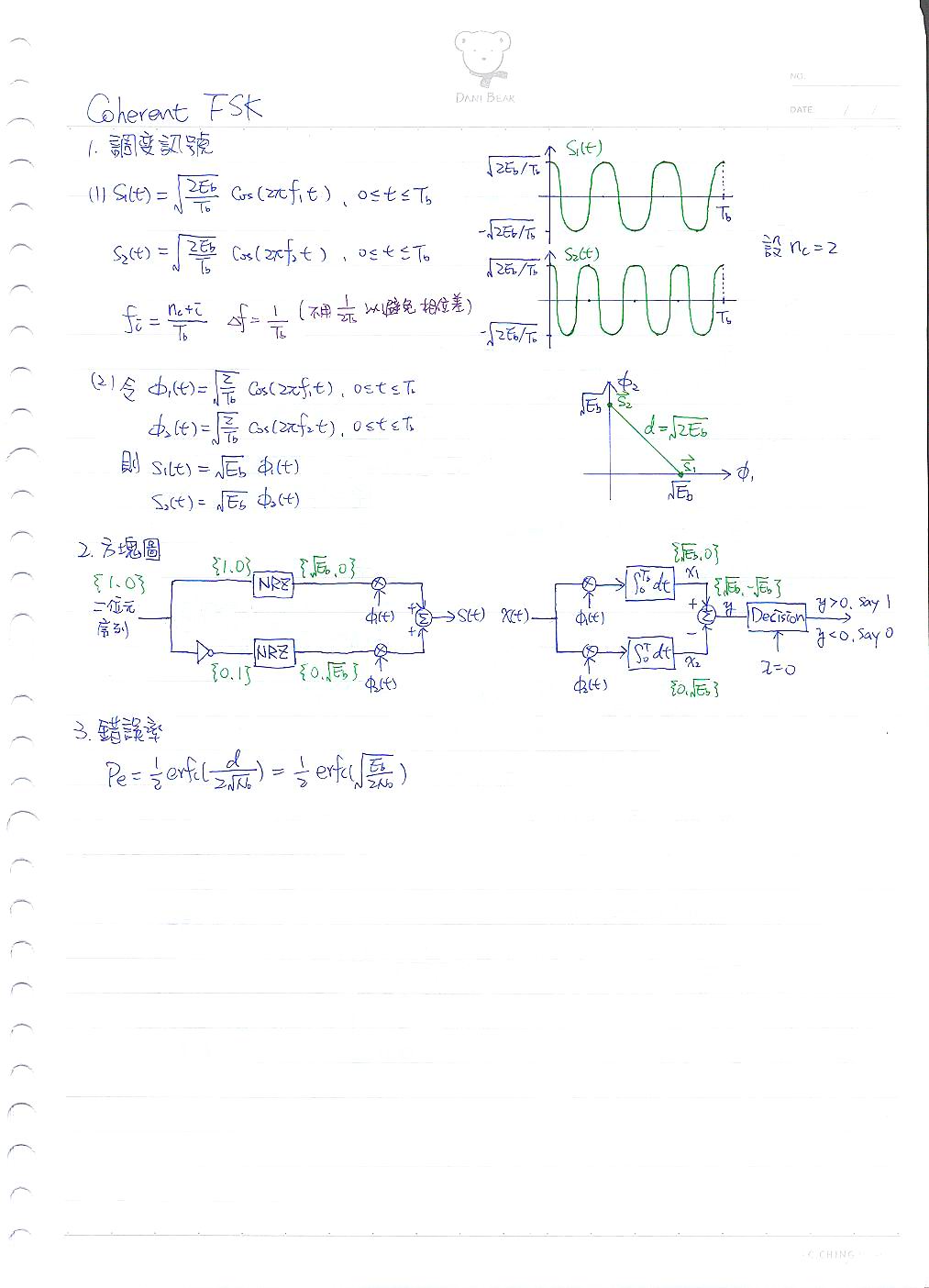

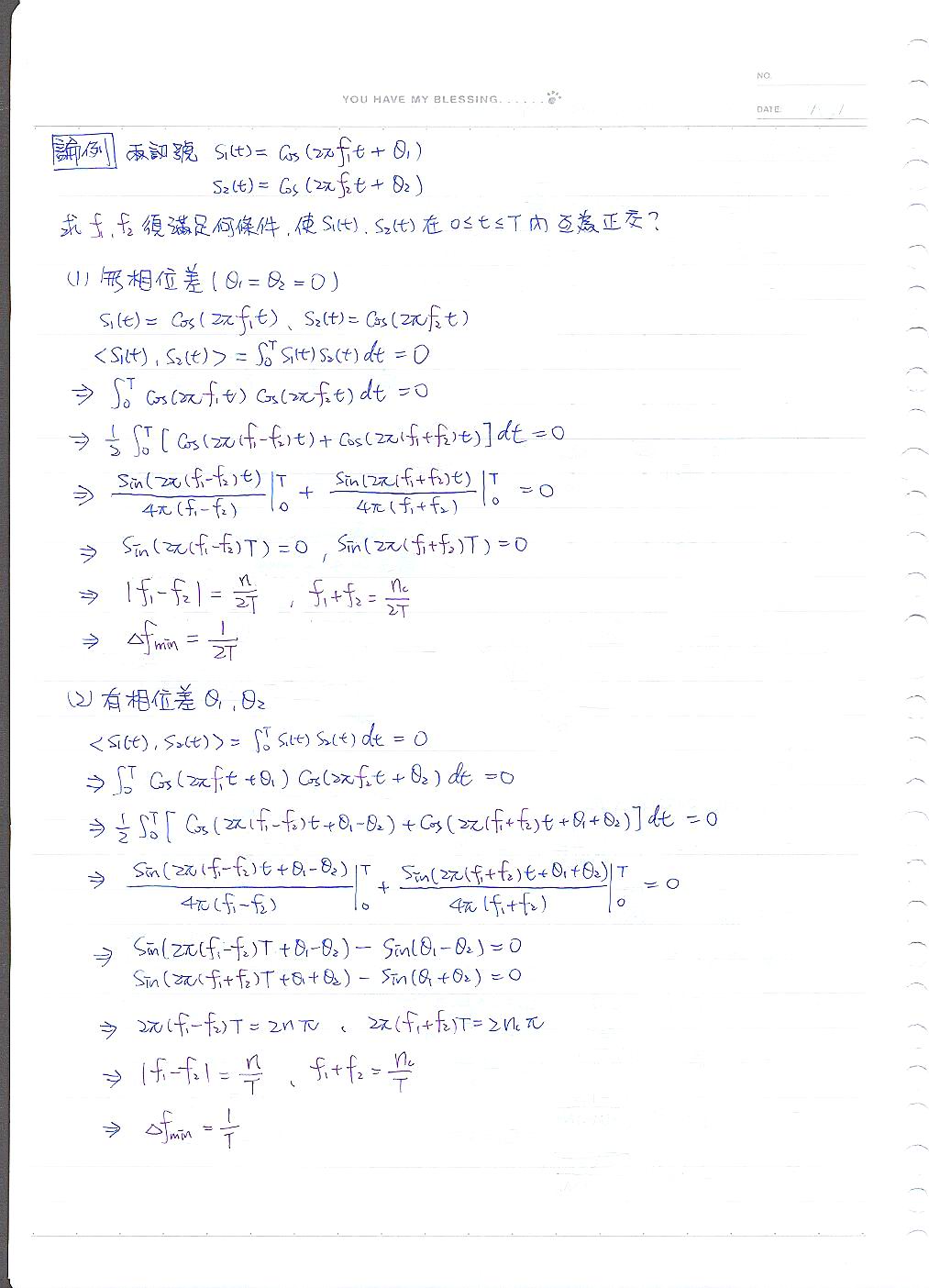

- Coherant FSK
![[圖]]()
![[圖]]()

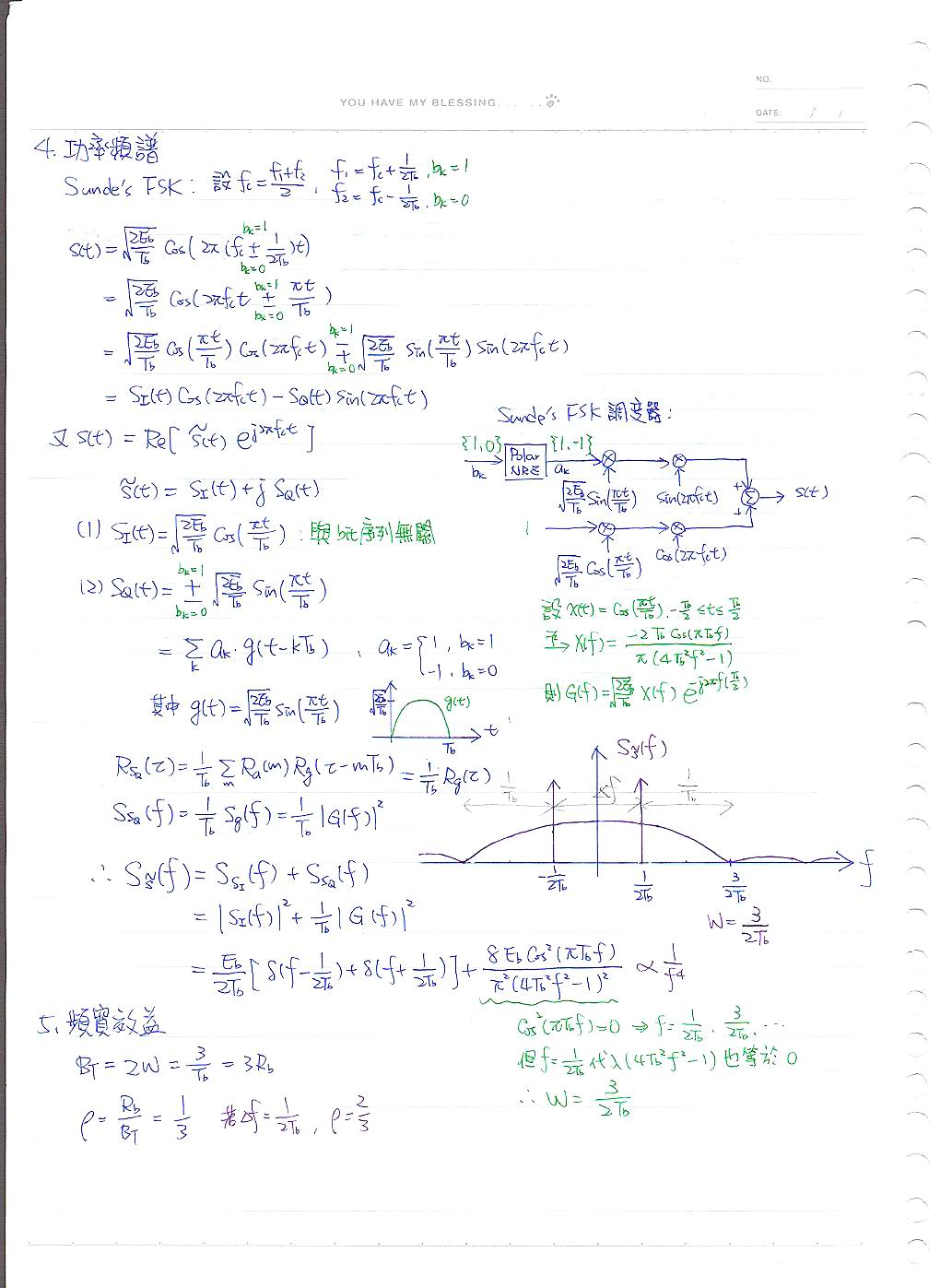

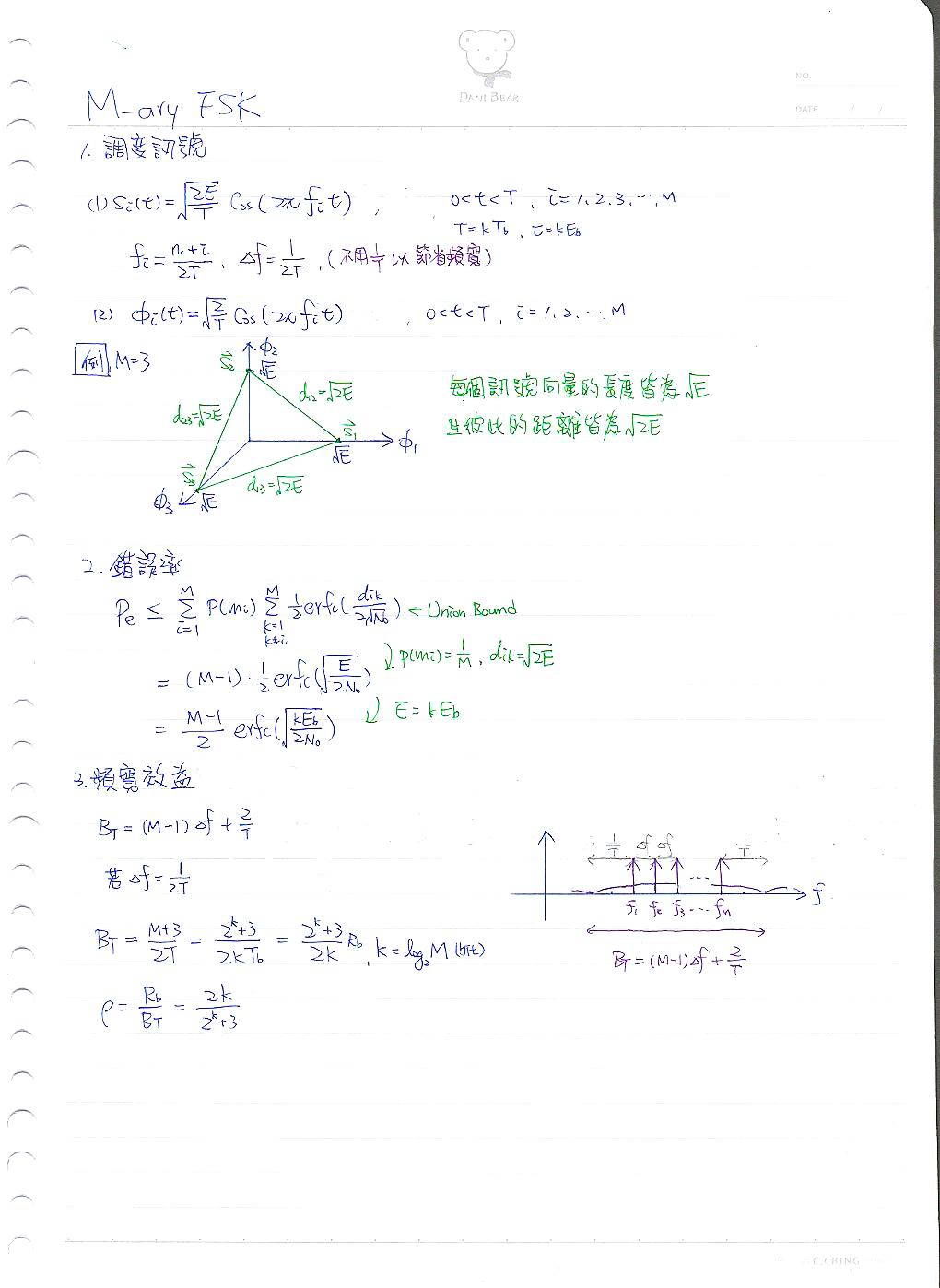

- M-ary FSK
![[圖]]()

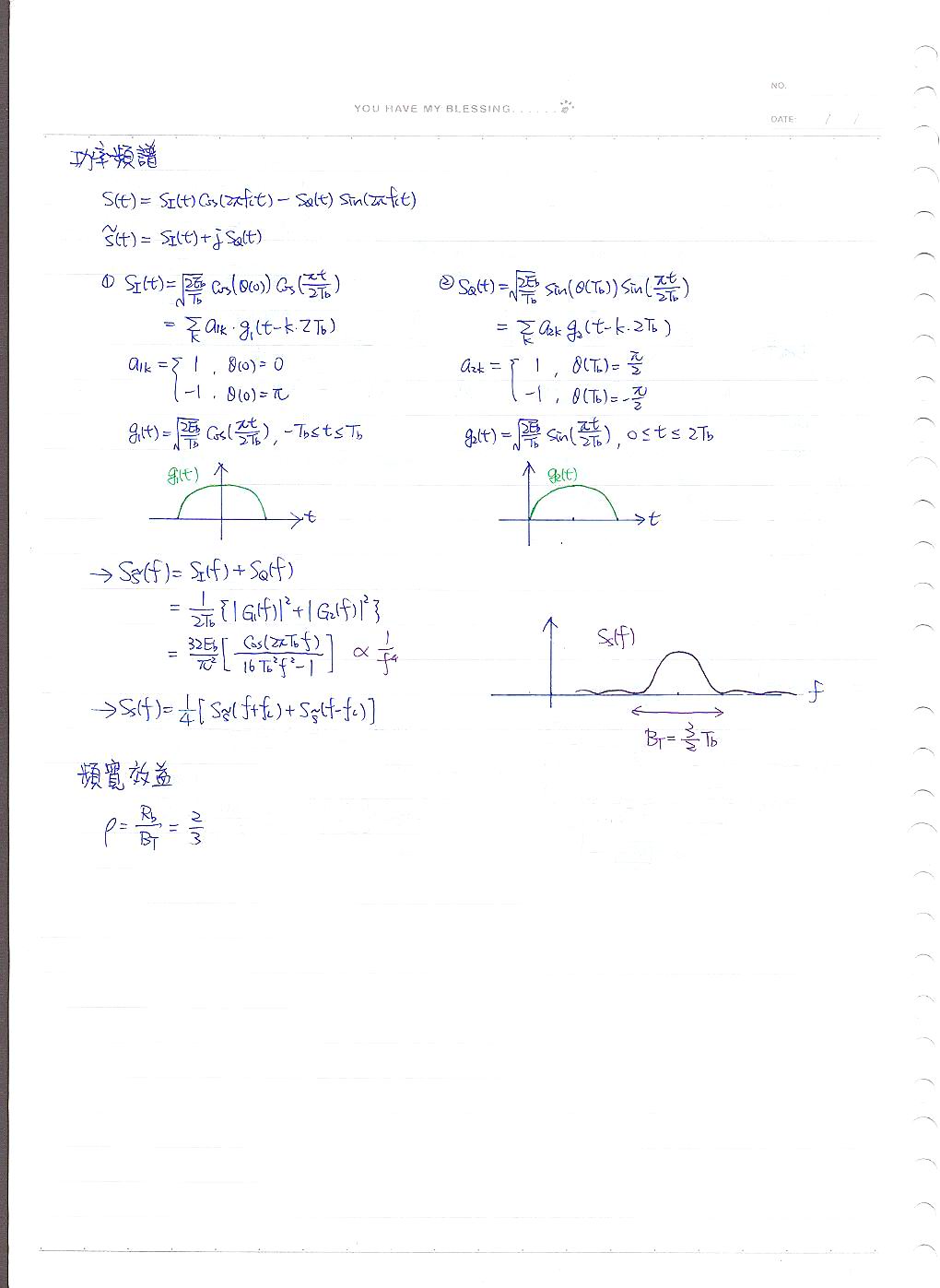

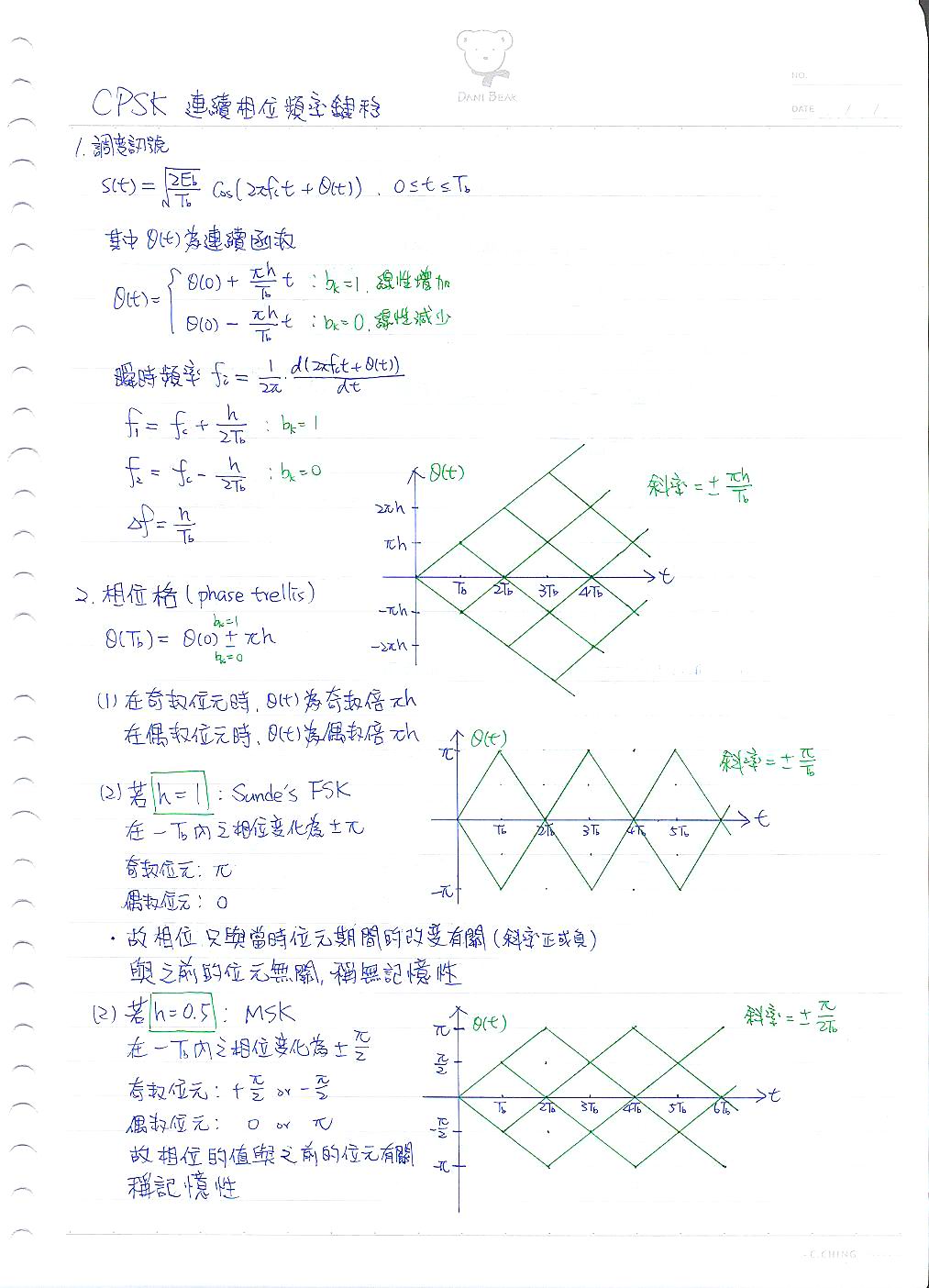

- CPSK 連續相位頻率鍵移
![[圖]]()

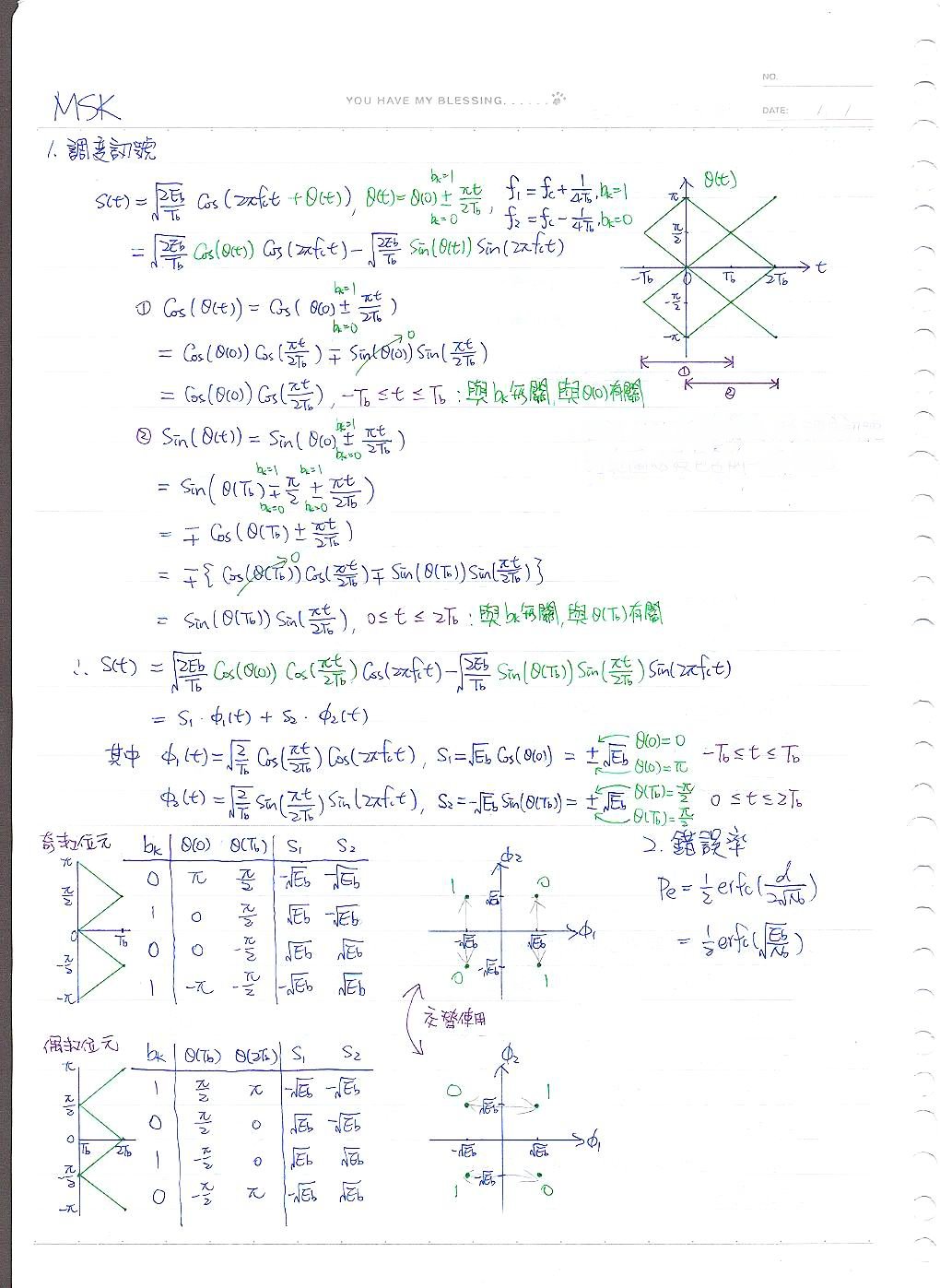

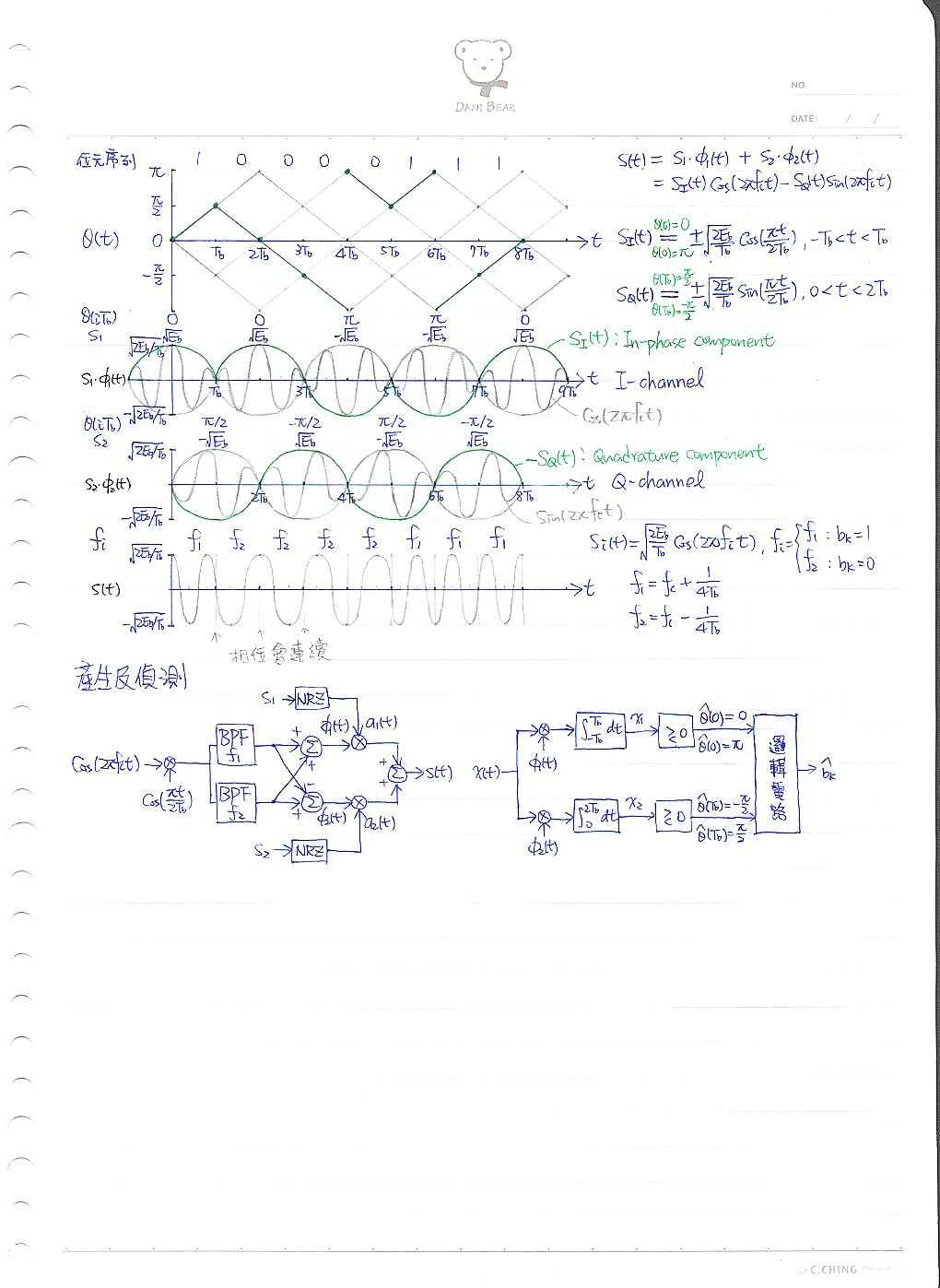

- MSK
![[圖]]()
![[圖]]()
![[圖]]()

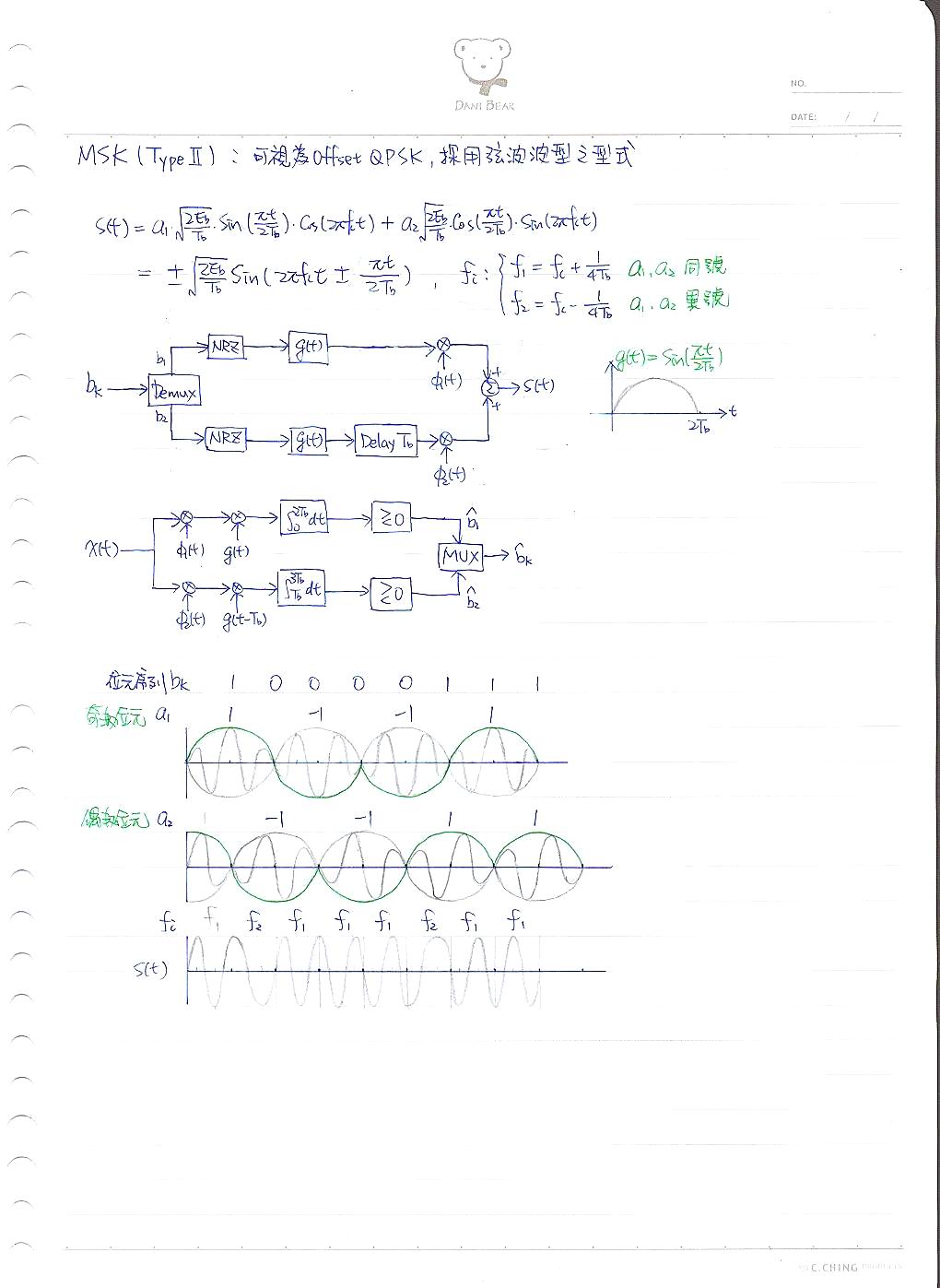

- MSK (Type II)
![[圖]]()

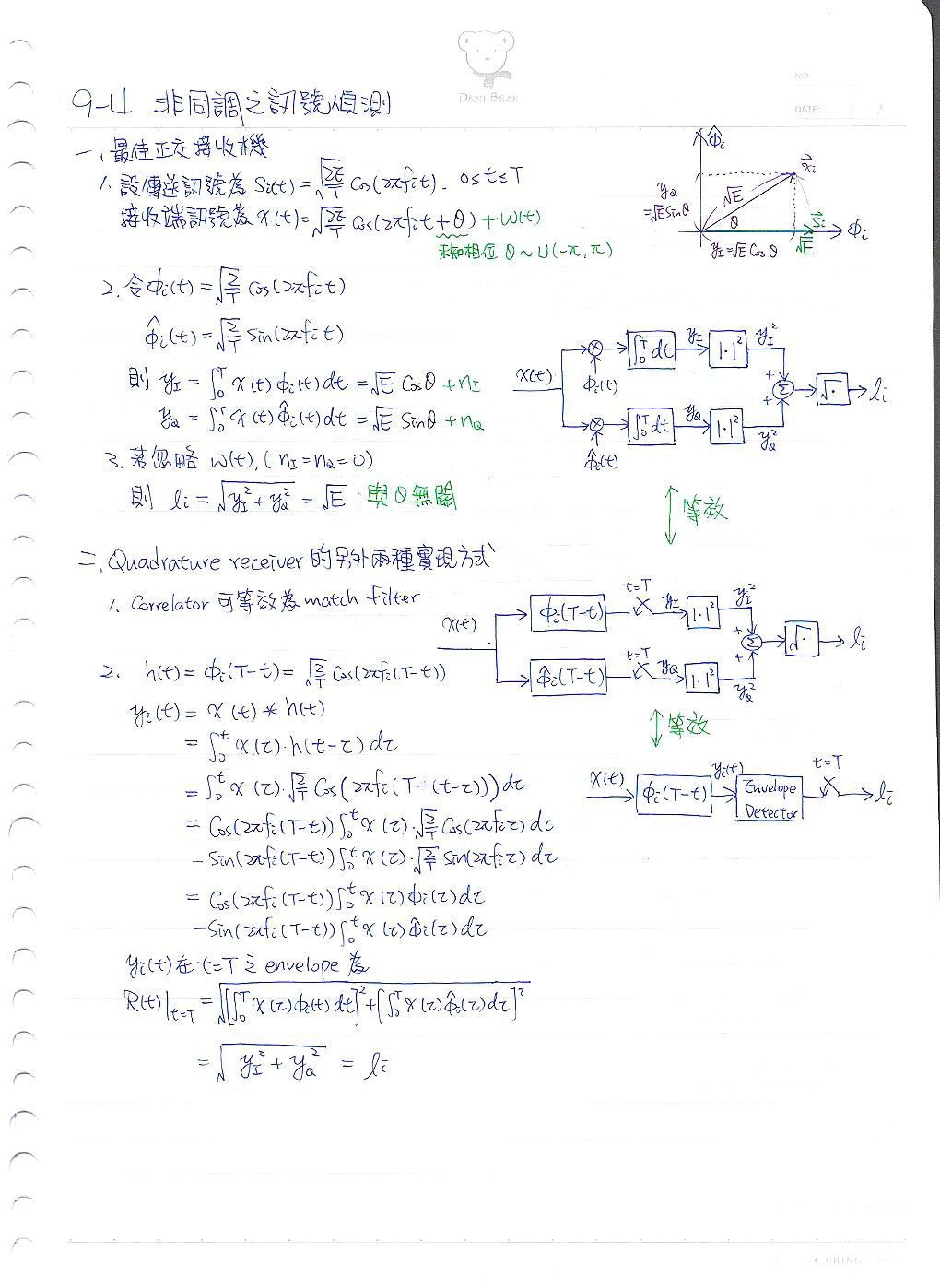

- 非同調之訊號偵測
![[圖]]()

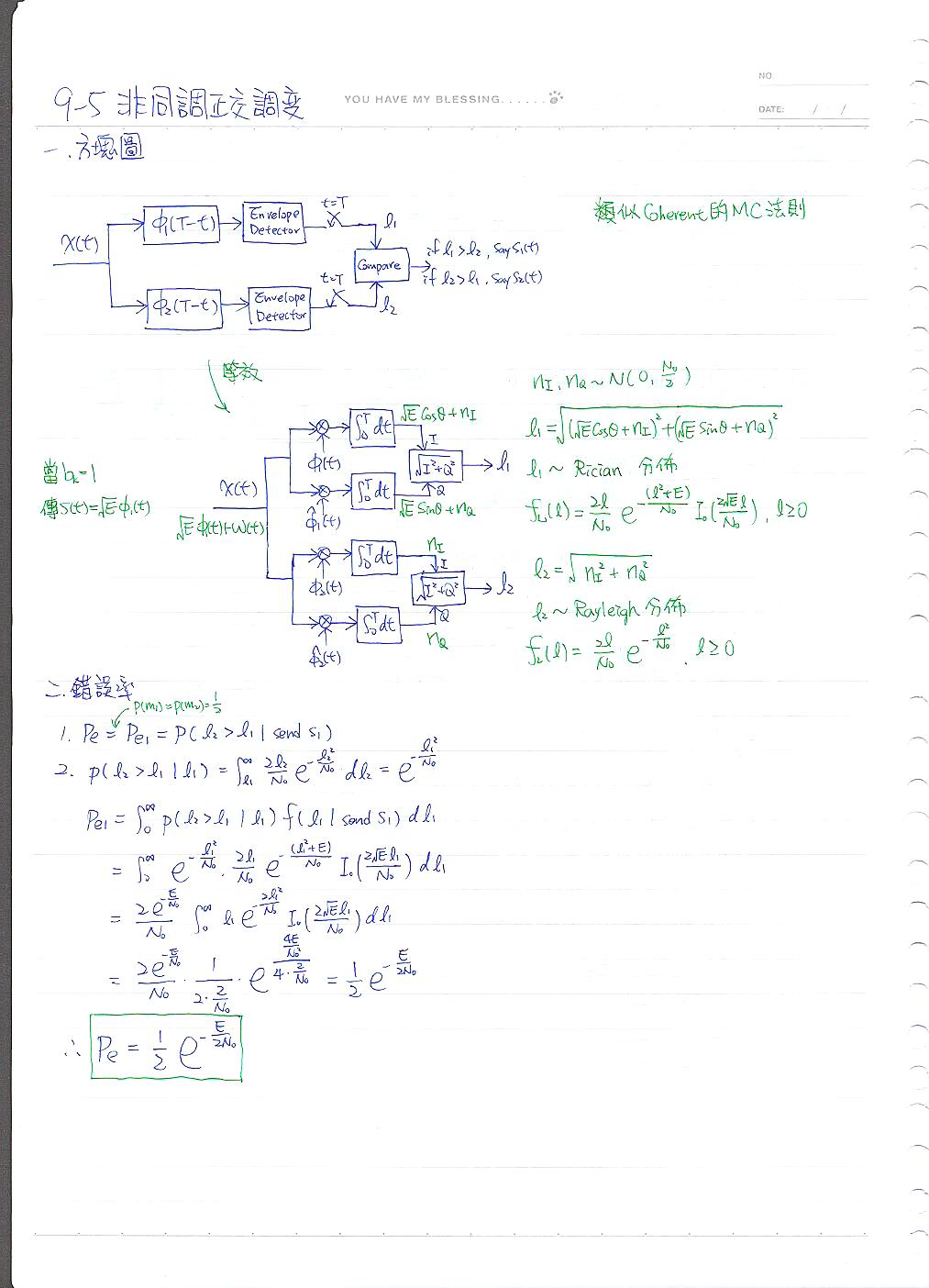

- 非同調正交調變
![[圖]]()

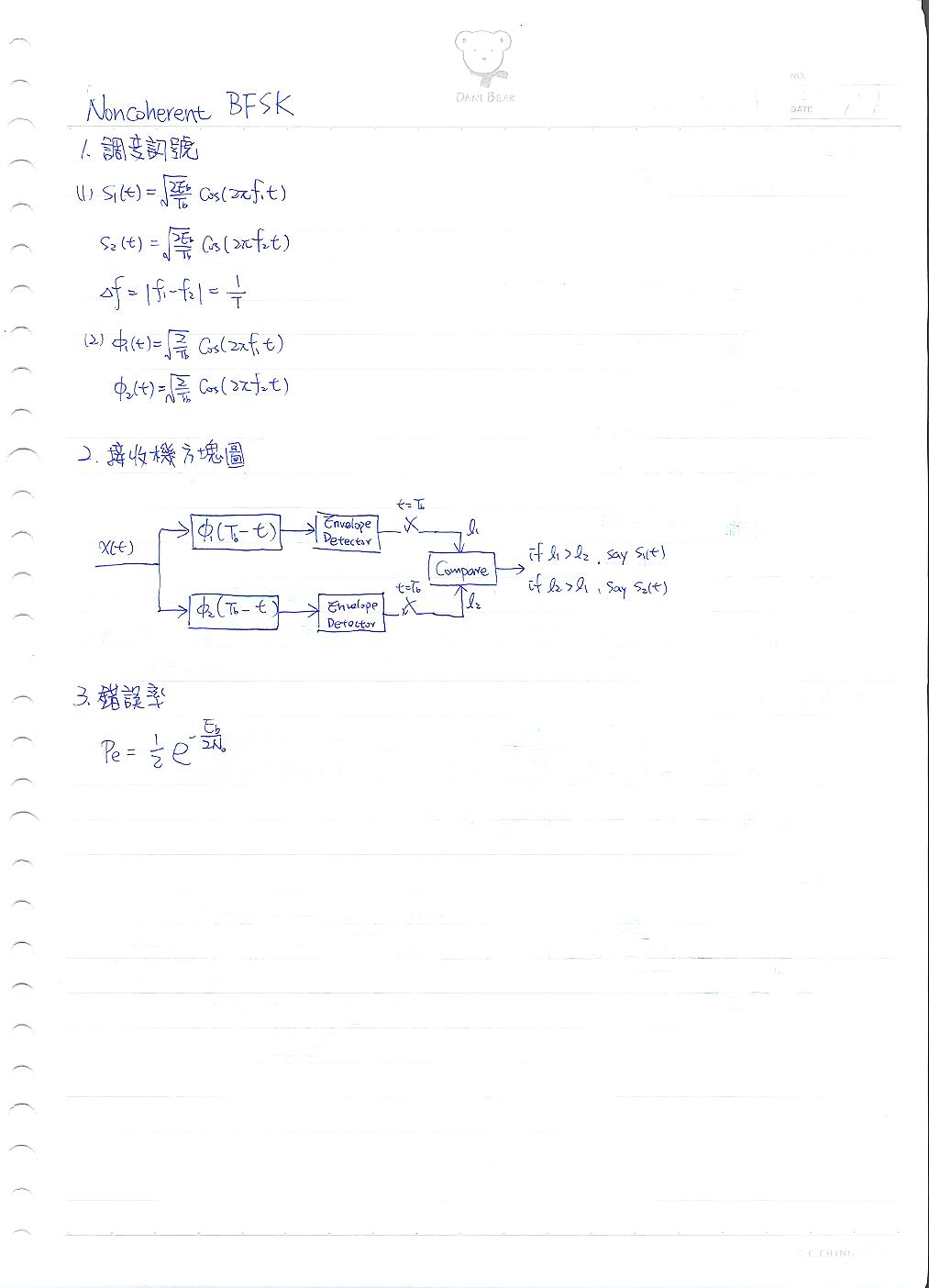

- Noncoherent BFSK
![[圖]]()

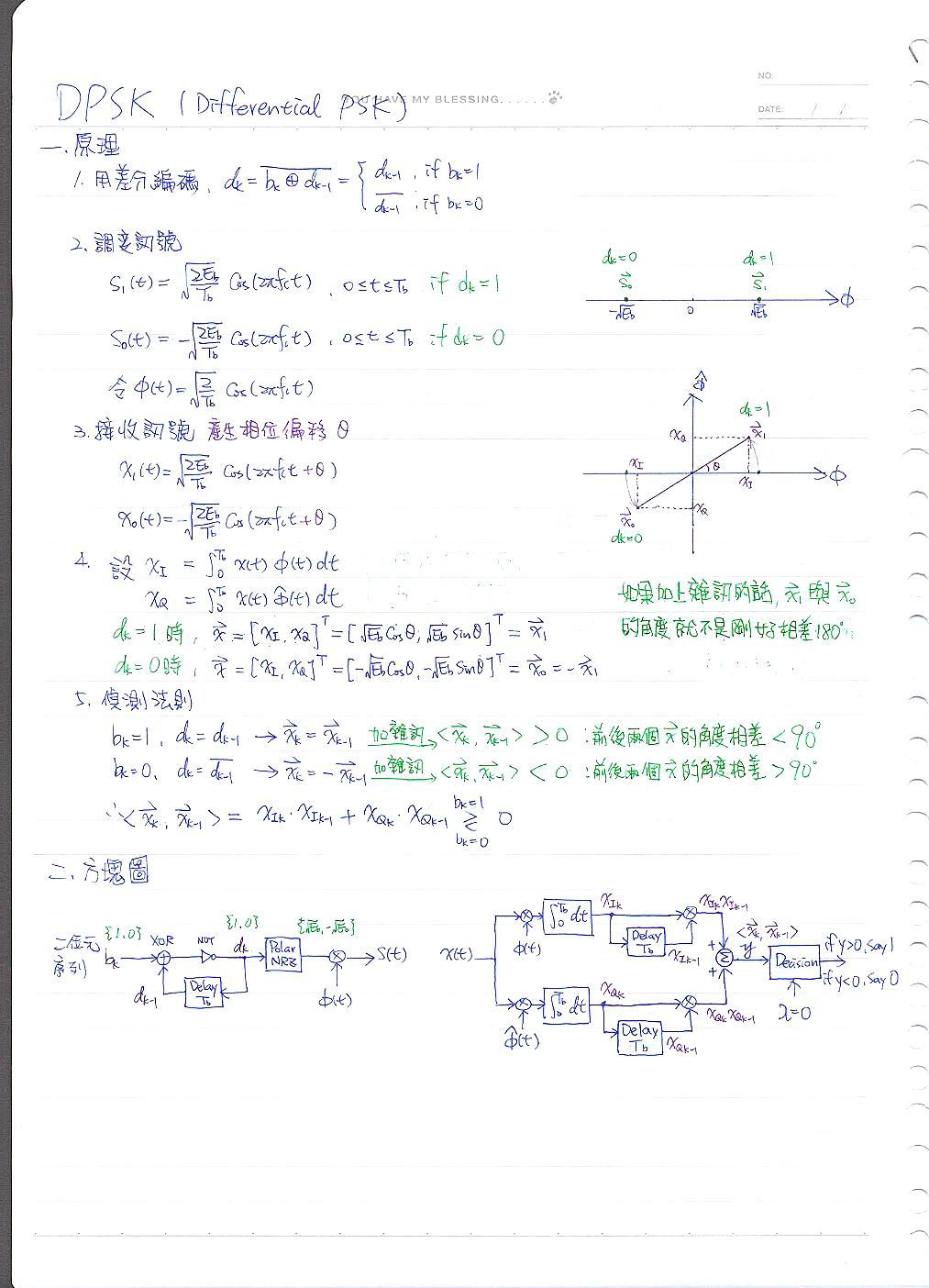

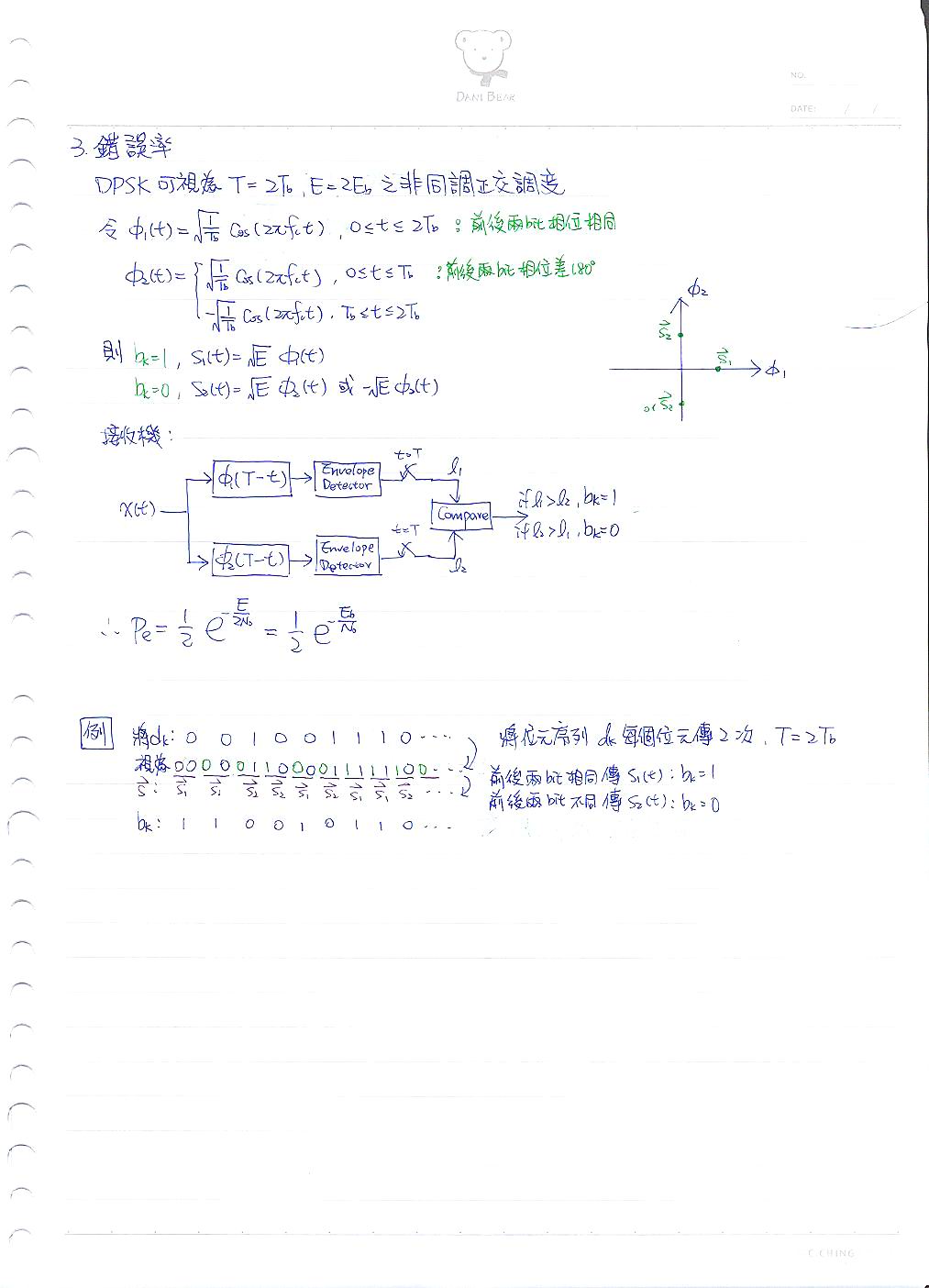

- DPSK (Differential PSK)
![[圖]]()
![[圖]]()

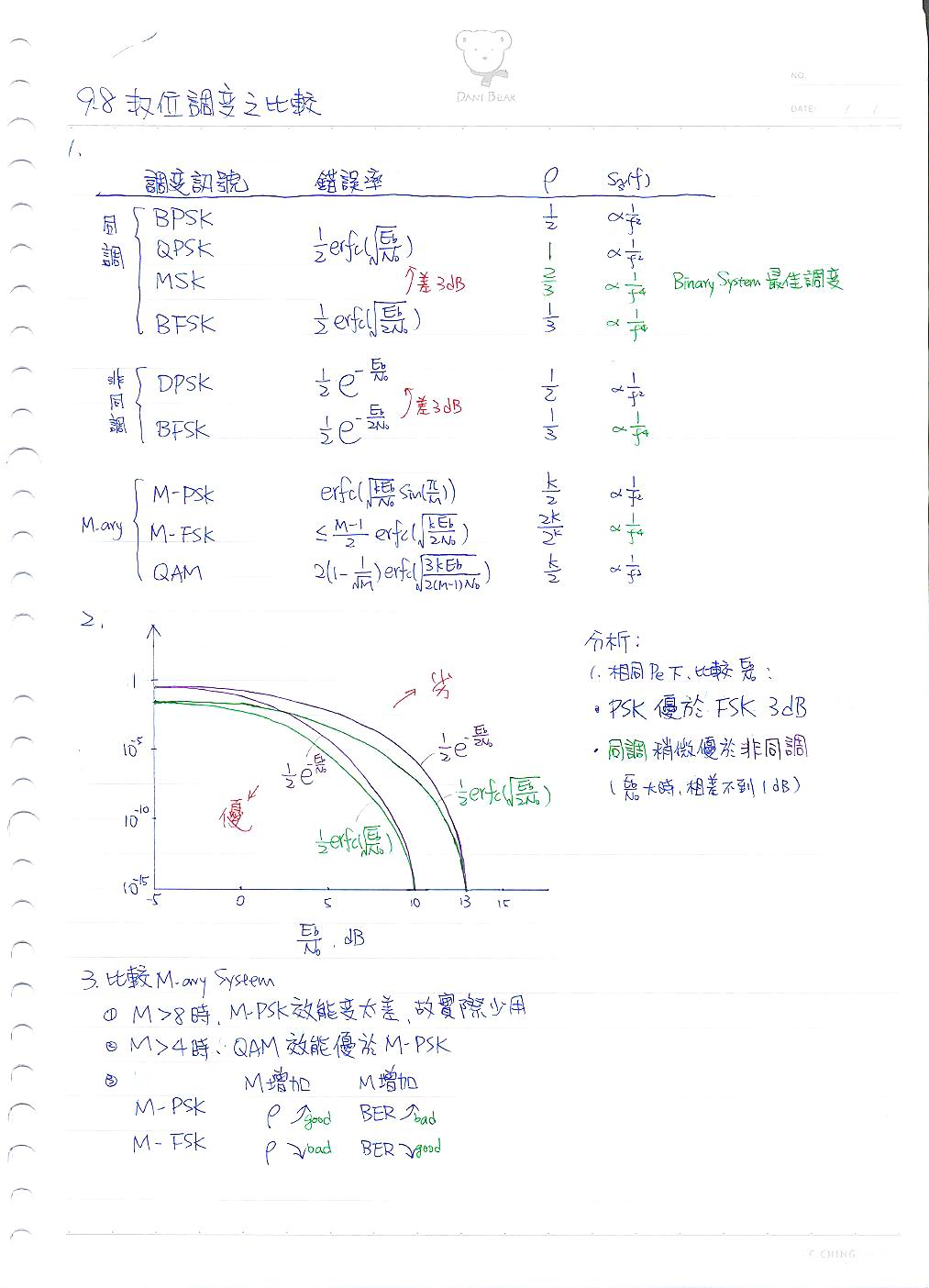

- 數位調變之比較
![[圖]]()
![[圖]](http://lh3.ggpht.com/-impgCFiqob4/ToODXnrxvvI/AAAAAAAABEE/y5YUPWxtVsM/s1404/CN_note_ch09_001.jpg)
![[圖]](http://lh4.ggpht.com/-M3h1YgsobFM/ToODXj6i0BI/AAAAAAAABEM/CQA0YnBFyMY/s1397/CN_note_ch09_002.jpg)
![[圖]](http://lh5.ggpht.com/-VS-k7Cv0UlM/ToODXvgzSII/AAAAAAAABEI/DSbRsNfb6Vo/s1397/CN_note_ch09_003.jpg)
![[圖]](http://lh6.ggpht.com/-StEr8wMgTaI/ToODYItq7cI/AAAAAAAABEQ/nxZnOb3wTM0/s1397/CN_note_ch09_004.jpg)
![[圖]](http://lh5.ggpht.com/-d7lJGJCGMkc/ToODYDsRH3I/AAAAAAAABEU/EzgDJU4gkBs/s1397/CN_note_ch09_005.jpg)
![[圖]](http://lh3.ggpht.com/-NmdZ7C2WBE4/ToODYdkmbII/AAAAAAAABEY/7alIXa0A3PM/s1397/CN_note_ch09_006.jpg)
![[圖]](http://lh4.ggpht.com/-B97AMjKvO_0/ToODYkMCKTI/AAAAAAAABEc/X_l9BPHf6jo/s1397/CN_note_ch09_007.jpg)
![[圖]](http://lh5.ggpht.com/-S2gUVeb9rAs/ToODY5culHI/AAAAAAAABEk/ATzA7Qs5wJM/s1404/CN_note_ch09_008.jpg)
![[圖]](http://lh5.ggpht.com/-pnobq9h7vm8/ToODYy2C7uI/AAAAAAAABEg/81k7WKmj9ag/s1404/CN_note_ch09_009.jpg)
![[圖]](http://lh6.ggpht.com/-YeqAWGOV560/ToODZUW5AYI/AAAAAAAABEo/zu2uxU_ozMc/s1397/CN_note_ch09_010.jpg)
![[圖]](http://lh5.ggpht.com/-gDllx0gMUuo/ToODZen0JCI/AAAAAAAABEs/POCcXnhhy24/s1397/CN_note_ch09_011.jpg)
![[圖]](http://lh6.ggpht.com/-cXqyiaGlZLU/ToODZvREnVI/AAAAAAAABEw/8PwelN6HrI0/s1404/CN_note_ch09_012.jpg)
![[圖]](http://lh5.ggpht.com/-68g1WvgG6Uw/ToODaknX2FI/AAAAAAAABE4/P7_GCvAr6Vs/s1397/CN_note_ch09_013.jpg)
![[圖]](http://lh6.ggpht.com/-zXFrNY3JBLs/ToODaGl6ZII/AAAAAAAABE0/uAqRtwLXEgE/s1397/CN_note_ch09_014.jpg)
![[圖]](http://lh4.ggpht.com/-WJBHrG09FRU/ToODa1QJA4I/AAAAAAAABE8/x5wUnoWxGss/s1397/CN_note_ch09_015.jpg)
![[圖]](http://lh4.ggpht.com/-LvcnzUB5onw/ToODbOCUbwI/AAAAAAAABFA/5MGb2_jlHPA/s1397/CN_note_ch09_016.jpg)
![[圖]](http://lh6.ggpht.com/--c69JYB_MvQ/ToODbjmQrAI/AAAAAAAABFE/0G8EKoeSYDc/s1397/CN_note_ch09_017.jpg)
![[圖]](http://lh3.ggpht.com/-9G_heOxBkCg/ToODb4GQUDI/AAAAAAAABFM/ScyEFIrGWKc/s1404/CN_note_ch09_018.jpg)
![[圖]](http://lh6.ggpht.com/-EPgn7avhhCU/ToODb3yfxOI/AAAAAAAABFI/0RH91p-R8tg/s1404/CN_note_ch09_019.jpg)
![[圖]](http://lh4.ggpht.com/-fr0q_7guwDA/ToODce3HCzI/AAAAAAAABFQ/u7K2lHuIYik/s1404/CN_note_ch09_020.jpg)
![[圖]](http://lh6.ggpht.com/-rMIz5H34wdI/ToODcyvbe8I/AAAAAAAABFU/8ACb84ogbL4/s1404/CN_note_ch09_021.jpg)
![[圖]](http://lh5.ggpht.com/-hLKarvXO9uI/ToODdJGNjNI/AAAAAAAABFY/ELWYRRjTrYY/s1404/CN_note_ch09_022.jpg)
--
